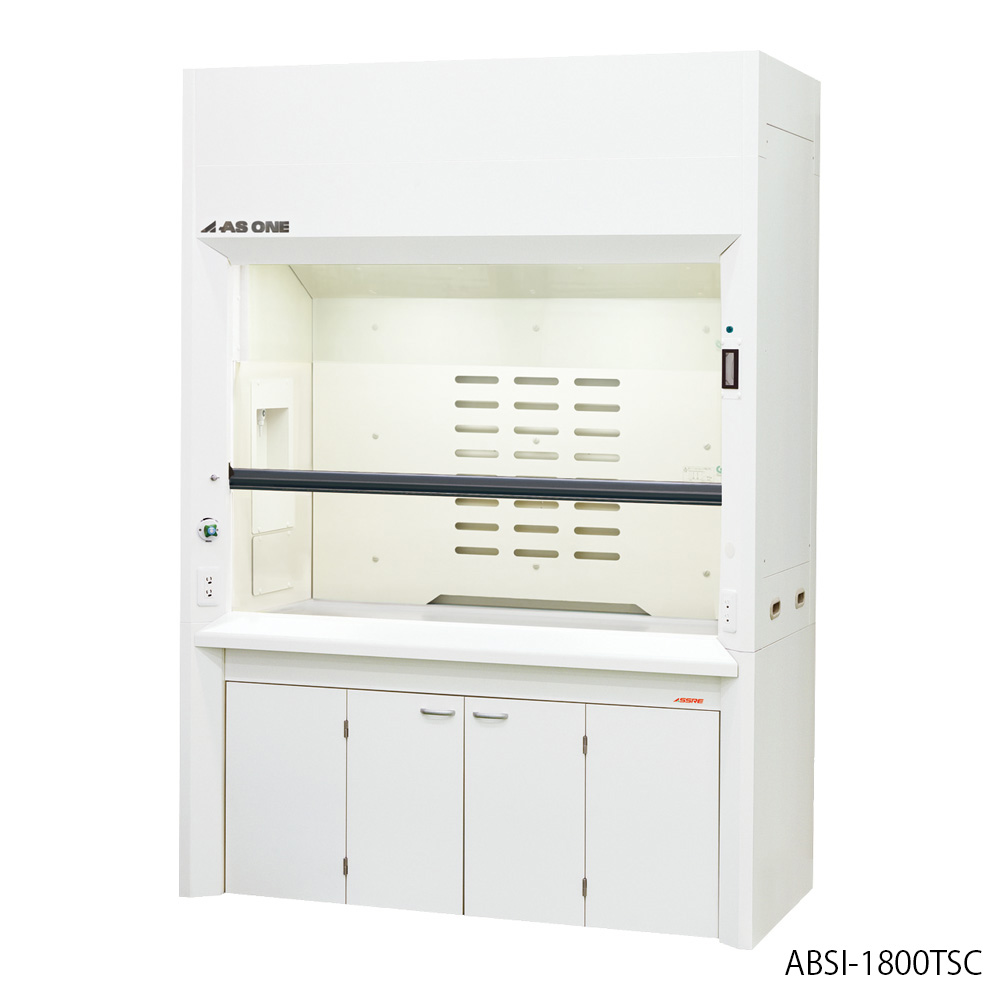

Fume Hood (Wet Type Scrubber Overlay Type) Deep 1800 x 980 x 2550 mm

Features

• A type in which a scrubber is combined in the upper part of the hood and the inside of the frame, and it does not take up a horizontal installation space.
• Suitable for treatment of water-soluble gas (cannot treat water-insoluble gas).
• For Acid/Alkali

Specification

• specifications: deep
• External Dimensions (mm): 1800 x 980 x 2550
• Inner Dimensions (mm): 1550 x 755 x 1100
• Weight (approx. kg): 605
• Control wind speed: 0.5 m/s (Opening height of sash at work: 400 mm)
• Material: Exterior/Steel (Powder Coating Finish), Interior/Chemical-Resistant/Heat-Resistant Board (Flame Retardant/Phenolic Resin Laminated Board), Work Surface/Epoxy Resin Top Plate Integrally Molded Product (32 mm Thickness)
• Lifting Sash: Tempered Glass (5 mm Thickness), with Balance Weight Type Opening Limiting Key (Height 400 mm), Handle/ABS Resin
• Hydrant: Chemical-Resistant Coating Remote Control Type/1 Location Water Supply Connection Opening G1/2 (Female Screw Stopper)
• Drain Port: Drain Connection Port 25 A with Recessed Resin Sink and Drain Trap
• Static pressure (exhaust): 490 Pa
• Outlets: 2 (100 VAC 15 A with 2 connected grounding)
• lighting: LED fluorescent
• Operation Switch: Touch Panel Lighting/Fan
• safety features: exhaust airflow display
• Exhaust Connection: PVC (Vinyl Chloride Resin) Volume Damper Phase Flanged
• Power connection: Terminal block with electrical box

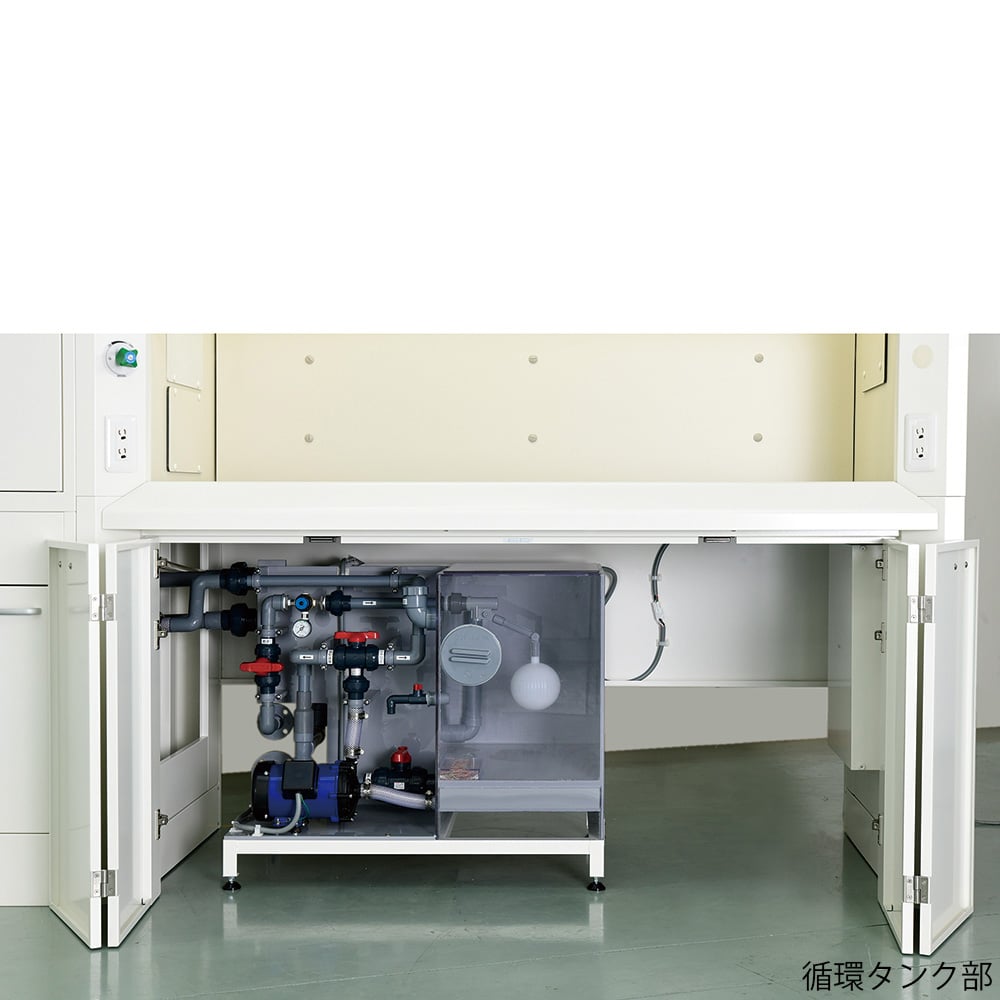

• Exhaust gas treatment equipment with a set of wet-mounted scrubber units
• [Exhaust]
• Air volume (m3/min): 21
• Duct Connection Port: 250 A
• Required Duct Diameter (φmm): 250
• [Ancillary Facilities]
• Scrubber pump power: 260 W
• Tank Capacity (L): Approx. 80
• Fluorescent Lamp (Pieces): 40 W x 2 Lamps Equivalent
• Operating weight (approx. kg): 735
• *Shipping, delivery, installation and assembly costs are required separately. Please contact us.
• *Exhaust fan is not included. Please contact us.
