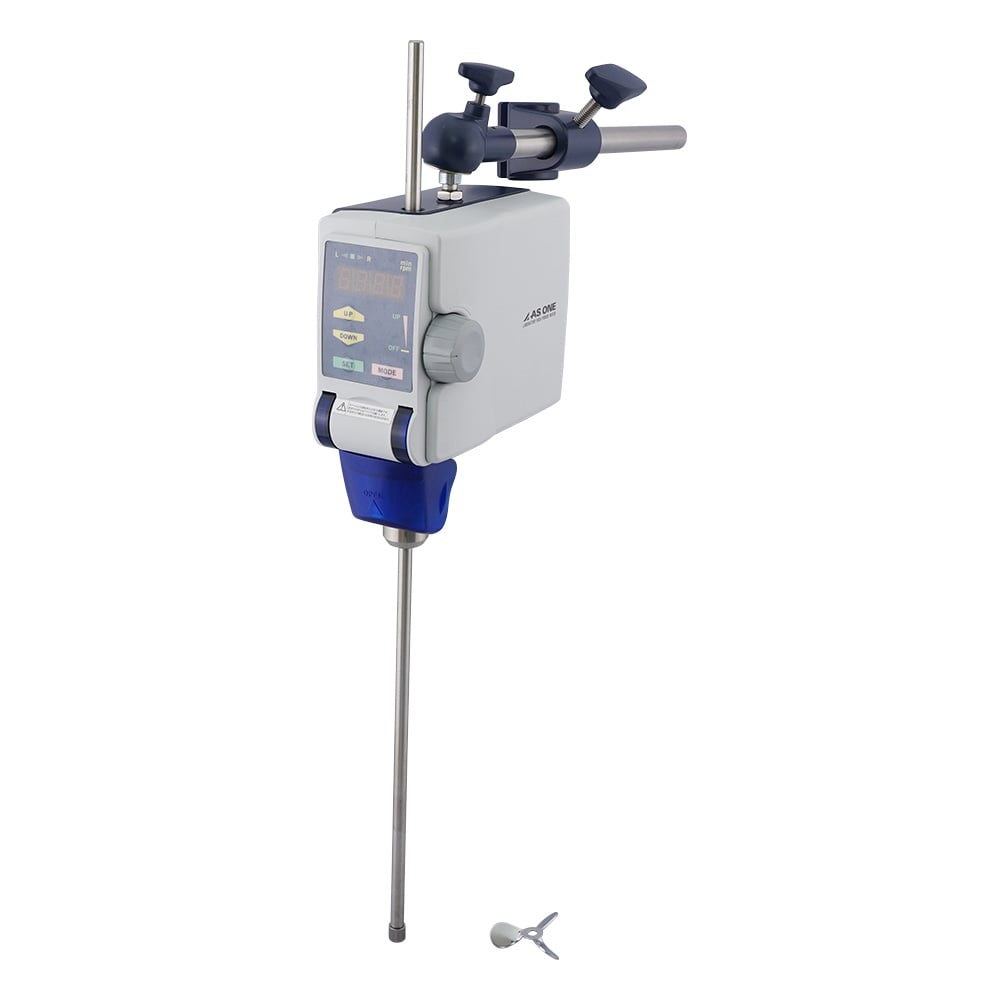

Tornado (Agitator) with Timer, 5 ~ 300 rpm with Pre-shipment Validation

Specification

• Validated products are Azuwan original services that conduct FAT (Factory Acceptance Test) at Azuwan before shipping.
• Validate (FAT) before shipping.
• After receiving the order, a FAT instruction form (plan) is sent to the user, and after the signature is returned, the FAT is performed.
• Appendix: FAT report/Calibration Certificate of used measuring instrument copied
• *I am attaching Azwan's original FAT instruction manual (see the sample at the bottom left of the Screen).
• Temperature point: number of revolutions
• Speed: 5 ~ 300 rpm
• Maximum torque: 0.98 N/m (10.0 kgf/cm)
• Timer Type
• rotation control: speed feedback control
• Motor: DC Brushless Motor 30 W (Class B Insulation/130 C)

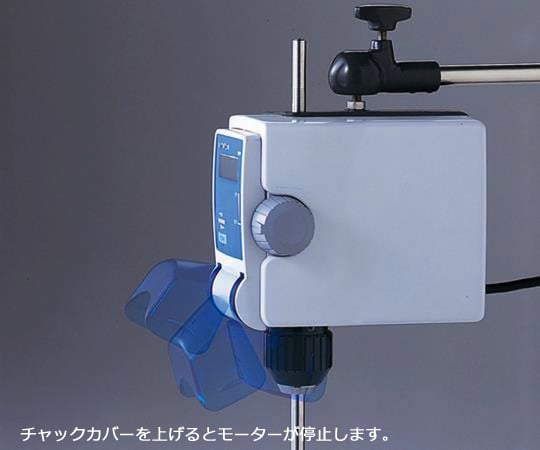

• Safety functions: Thermal protector, current limiting circuit, chuck cover interlocking fail-safe function
• Timer function: ON/OFF Timer setting range/1 minute to 99 hours and 59 minutes (in 1-minute increments), Auto reverse time setting range/1 minute to 99 hours and 59 minutes (in 1-minute increments)
• Accessory function: forward/reverse switching function
• Chuck: Collet type hand-tightened chuck for phi8 mm
• Size: 98 x 155 x 164 mm
• Power supply: 100 VAC 50/60 Hz 88 VA
• Weight: 2.5 kg
• Accessories: Arm holder (1 -5472 -14), Arm bar (1 -5472 -15), Stirring bar (Φ8 x 495 mm) (1 -5472 -13), Stirring blade propeller type (phi 50 mm) (1 -5472 -11), Stirring blade fixing nut (1 -5472 -12)
• *Stand (5 -5379 - 01) not included.
• *If you would like to request a local IQOQ, please contact us separately. We need your installation address for the estimate.
