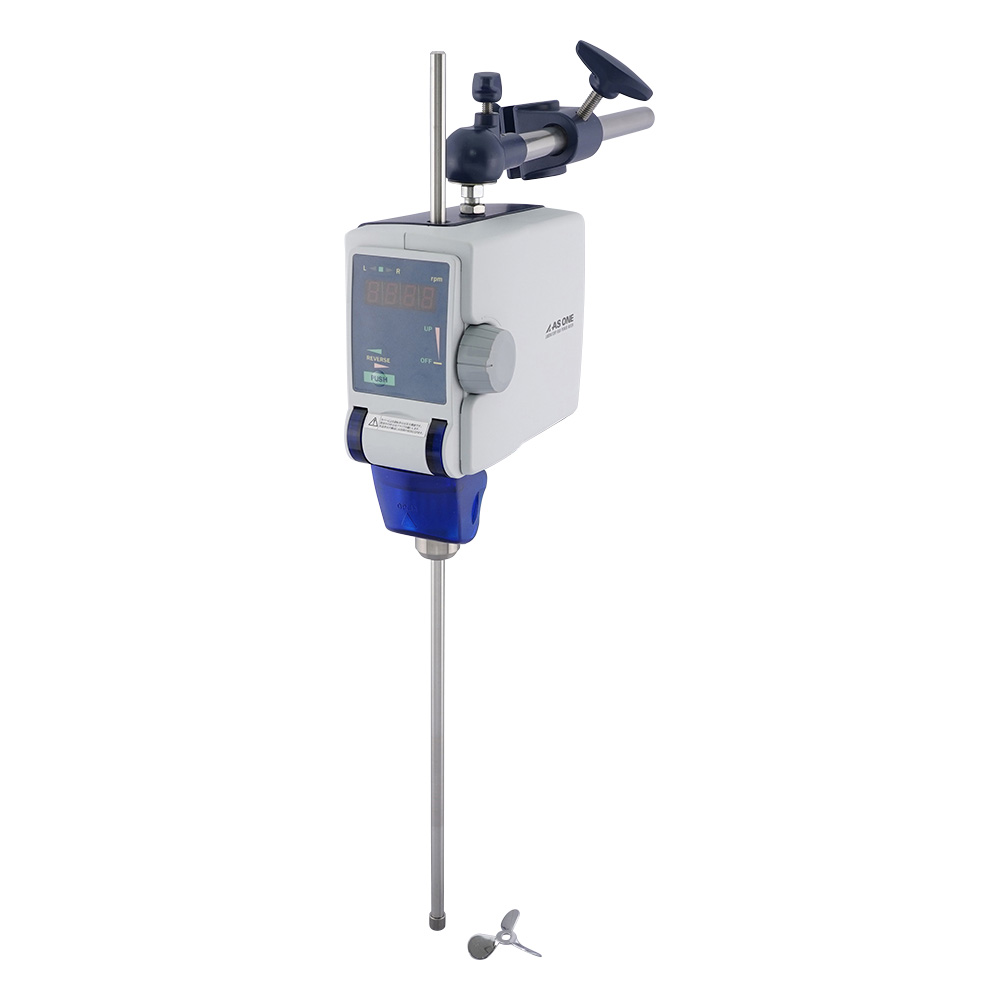

Tornado (Agitator) High Torque type 20 ~ 1200 rpm with Pre-shipment Validation

Specification

• Validated products are Azuwan original services that conduct FAT (Factory Acceptance Test) at Azuwan before shipping.
• Validate (FAT) before shipping.
• After receiving the order, a FAT instruction form (plan) is sent to the user, and after the signature is returned, the FAT is performed.
• Appendix: FAT report/Calibration Certificate of used measuring instrument copied
• *I am attaching Azwan's original FAT instruction manual (see the sample at the bottom left of the Screen).
• Temperature point: number of revolutions
• Speed: 20 ~ 1200 rpm
• Maximum torque: 0.39 N/m (4.0 kgf/cm)
• High power type

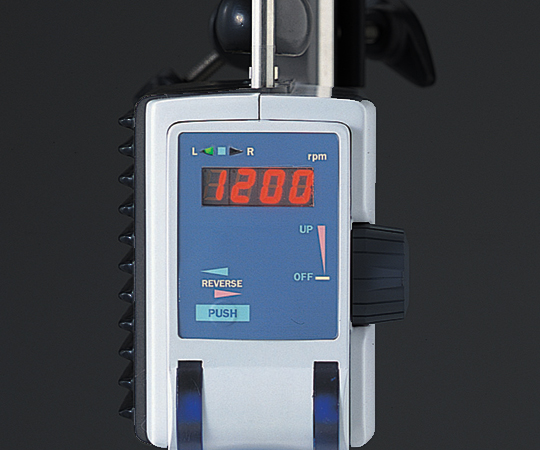

• rotation control: speed feedback control
• Motor: DC Brushless Motor 50 W (Class B Insulation/130 C)

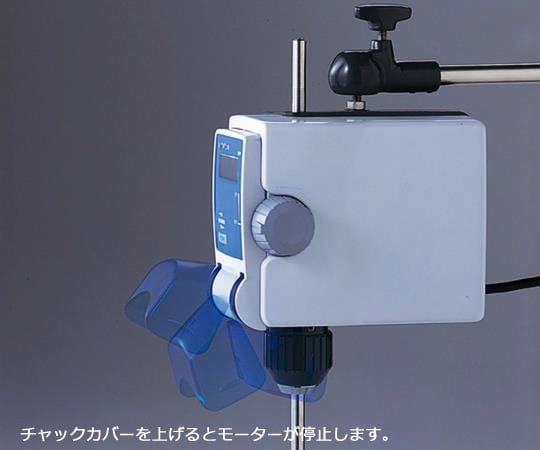

• Safety functions: Thermal protector, current limiting circuit, chuck cover interlocking fail-safe function
• Accessory function: forward/reverse switching function
• Chuck: Collet type hand-tightened chuck for phi8 mm
• Size: 98 x 155 x 164 mm
• Power supply: 100 VAC 50/60 Hz 140 VA
• Weight: 3.5 kg
• Accessories: Arm holder (1 -5472 -14), Arm bar (1 -5472 -15), Stirring bar (Φ8 x 495 mm) (1 -5472 -13), Stirring blade propeller type (phi 50 mm) (1 -5472 -11), Stirring blade fixing nut (1 -5472 -12)
• *Stand (5 -5379 - 01) not included.
• *If you would like to request a local IQOQ, please contact us separately. We need your installation address for the estimate.
