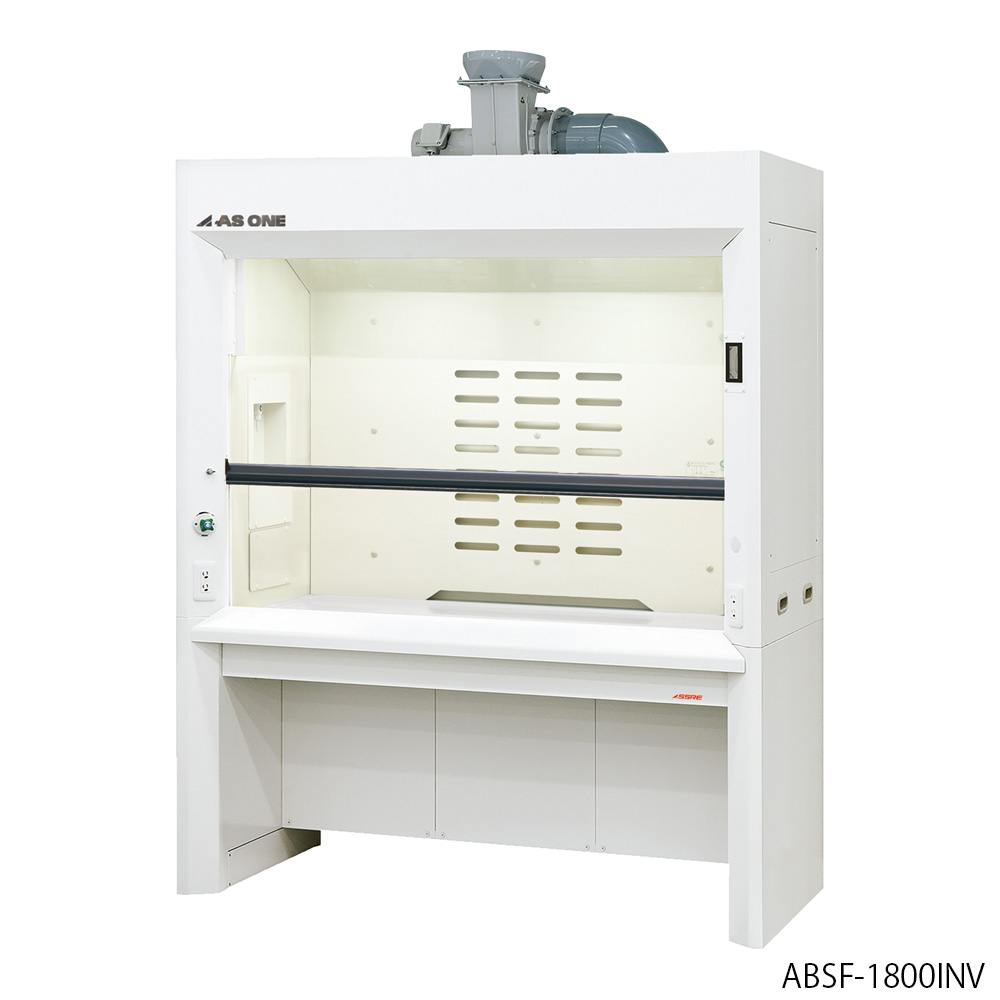

Fume Hood (FRP Fan Equipped/Inverter Type) Deep 1800 x 980 x 2250 mm

Features

• Equipped with an inverter, the exhaust air volume and static pressure can be flexibly changed even after installation.
• Equipped with air volume display function as standard, it is possible to check the exhaust condition and work.
• With Exhaust Fan
• For Acid/Alkali
• For Organic

Specification

• specifications: deep
• External Dimensions (mm): 1800 x 980 x 2250
• Inner Dimensions (mm): 1550 x 755 x 1200
• Weight (approx. kg): 485
• Control wind speed: 0.5 m/s (Opening height of sash at work: 400 mm)
• Material: Exterior/Steel (Powder Coating Finish), Interior/Chemical-Resistant/Heat-Resistant Board (Flame Retardant/Phenolic Resin Laminated Board), Work Surface/Epoxy Resin Top Plate Integrally Molded Product (32 mm Thickness)
• Lifting Sash: Tempered Glass (5 mm Thickness), with Balance Weight Type Opening Limiting Key (Height 400 mm), Handle/ABS Resin
• Hydrant: Chemical-Resistant Coating Remote Control Type/1 Location Water Supply Connection Opening G1/2 (Female Screw Stopper)
• Drain Port: Drain Connection Port 25 A with Recessed Resin Sink and Drain Trap
• Outlets: 2 (100 VAC 15 A with 2 connected grounding)
• lighting: LED fluorescent
• Operation Switch: Touch Panel Lighting/Fan
• safety features: exhaust airflow display
• Exhaust Connection: PVC (Vinyl Chloride Resin) Volume Damper Phase Flanged
• Power Supply Connection: Terminal Block with Electric Box
• Exhaust Fan: Top-Mounted FRP Motor Direct Connection Type/100KSS-O Power Supply/3Φ 200 V Motor/0.4 kW
• [Exhaust]
• Air volume (m3/min): 21
• Duct Connection Port: 250 A
• Required Duct Diameter (φmm): 250
• Attached Facility: Fluorescent Lamp (Piece)/40 W x 2 Lamps Equivalent
• *Shipping, delivery, installation and assembly costs are required separately. Please contact us.
• *If the duct distance is long or the number of turns is large, the fan capacity may be insufficient.
