Digital Temperature and Humidity Logger (Dekamoni Memory Type) with Chinese Calibration Certificate

Features

• Large digital display with compact body. Convenient for stationary type due to the depth of the body.
• The relative humidity over a wide humidity range (10~90%RH) is measured at ±3%RH (Typ).
• You can check the battery level at a glance.
• You can check the remaining memory at a glance.
• Monitor display is updated up to 30 seconds. It is possible to select from 5 pattern display modes.

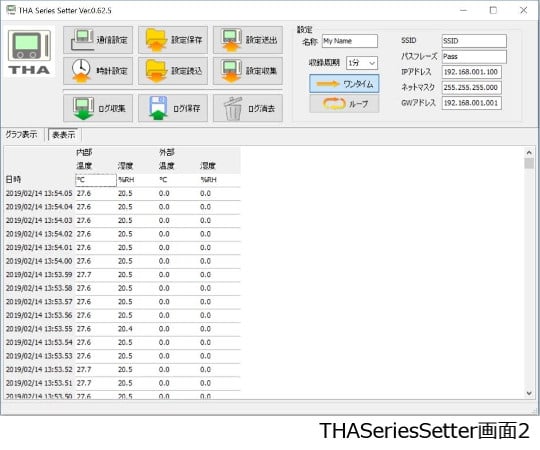

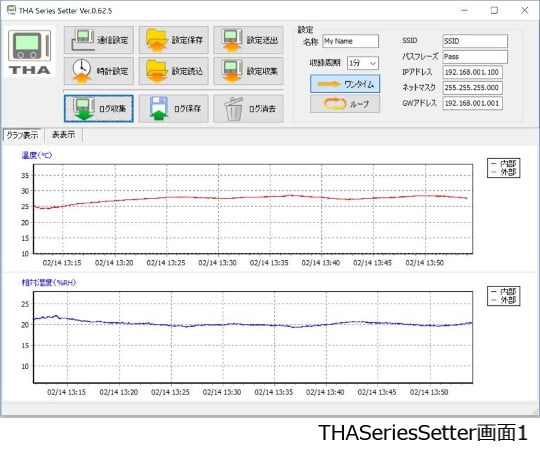

• The console's setup application (THA Series Setter) can be used to retrieve logs recorded from the USB terminal, which can also be used as a power supply port.

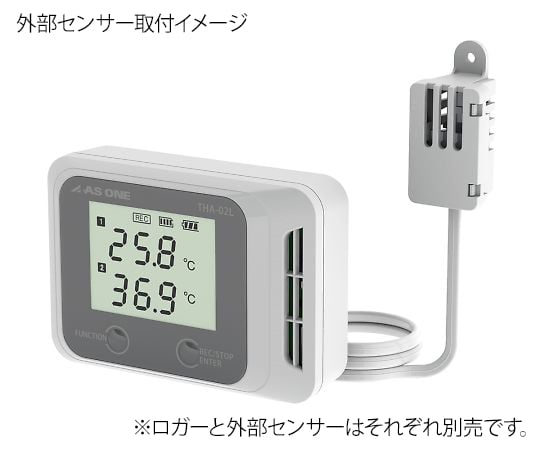

• The optional sensor can be used to measure remote locations, making it possible to measure 2CH with the main unit.

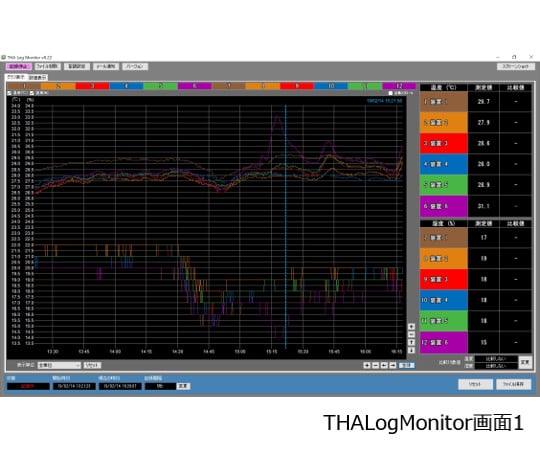

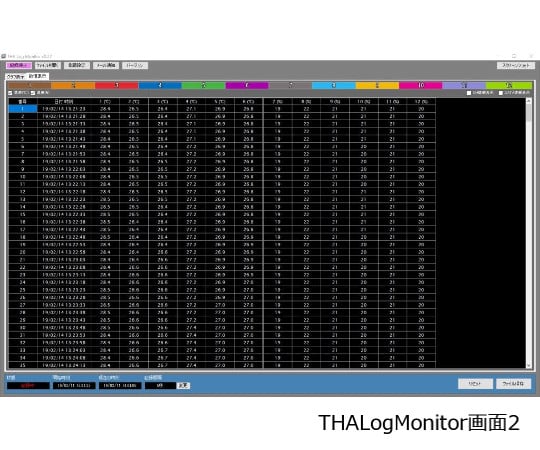

• The PC monitoring application (THA Logmonitor) enables real-time graph/list display via USB. (Recording interval for monitoring is from 5 seconds) (Up to 6 temperature and humidity can be measured.). Up to 3 units for internal and external use/Up to 6 units for internal use only)

Specification

• Operating temperature and humidity range: Temperature/0 ~ 60 degrees C, Humidity/90% RH or less (no condensation)
• Measured temperature and humidity range: Temperature/- 10 ~ 70 degrees C, Humidity/0 ~ 90% RH
• Display resolution: Temperature/0.1 °C, Humidity/1% RH
• Display accuracy:
• ▼ Temperature/+/- 0.3 degrees C (Typ), +/- 0.5 degrees C (Max) (0 ~ 60 degrees C)
• ▼ Humidity/+/- 3% RH (Typ), +/- 5% RH (Max) (25 degrees C, 10 ~ 90% RH)
• Sampling interval: 1 sec/5 sec/10 sec/30 sec/1 min/5 min/10 min/30 min/60 min
• Number of recorded points: Up to approximately 8,000 (1 point per 1 sampling period)
• Sensors:
• ▼ Temperature sensing part/bandgap semiconductor sensor
• ▼ Moisture Sensitive Part/Capacitive Thin-Film Humidity Sensor
• Size: Body/110 x 32 x 77 mm, Display/52 x 40 mm
• Power supply: 4 AA alkaline batteries (included for testing)
• Connection terminal: Modular jack for external sensor, USB (Mini-B)
• Weight: About 250 g (including 4 batteries)
• Material: ABS
• Application software:
• ▼ For body setup/THA Series Setter
• ▼ PC Monitoring/THA Logmonitor
• ▼ Both run on Windows ? 7/8/8.1/10/11 (32/64 bit). < a href="https://axel.as-1.co.jp/images/pdf/pb/4-793-01/THASetter_2.0.1.zip" rel="noopener nofollow" target="_blank" >
• Download the phone setup application (THA Series Setter 2.0.1) here. < /a > < a href="https://axel.as-1.co.jp/images/pdf/pb/4-793-01/THA_Log_Monitor_v2.01.zip" rel="noopener nofollow" target="_blank" >
• Download the PC monitoring application (THA Logmonitor v 2.01) here < /a >
• *It is not available for Airframe Farm No., v 1.00.
